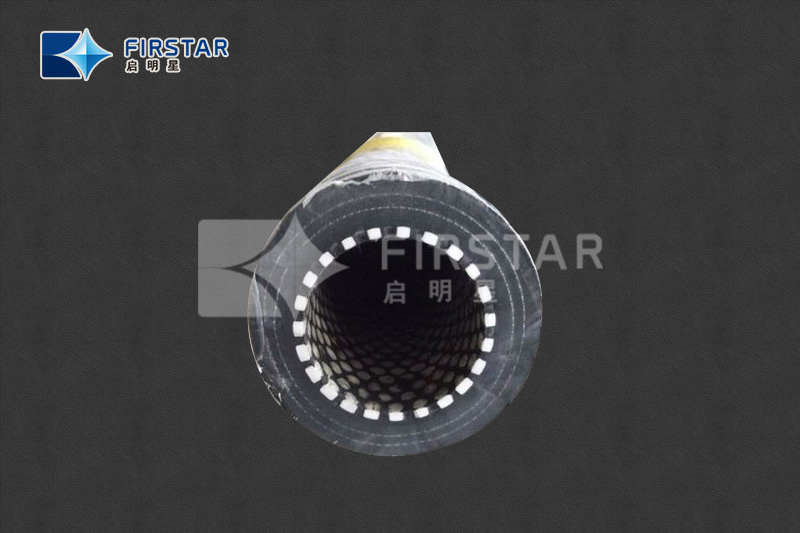

Ceramic lined flexible rubber hoses
ceramic-lined flexible hoses are ideal for use in highly aggressive services where conventional rubber hose, expansion joints, or bellows connections require frequent replacement. QMX hoses may also be used to isolate mechanical vibration or to connect non-stationary equipment.
Dry abrasion line of powder delivery
(Sand, grid, powdered coal, grain, cement and other fine powder)
For both delivery and suction
Features
Abrasion Resistance
Composite of aluminum ceramics and rubber with high elasticity and strength for inner material.
Excellent abrasion resistance against dry abrasion.
Inner Rubber Layer

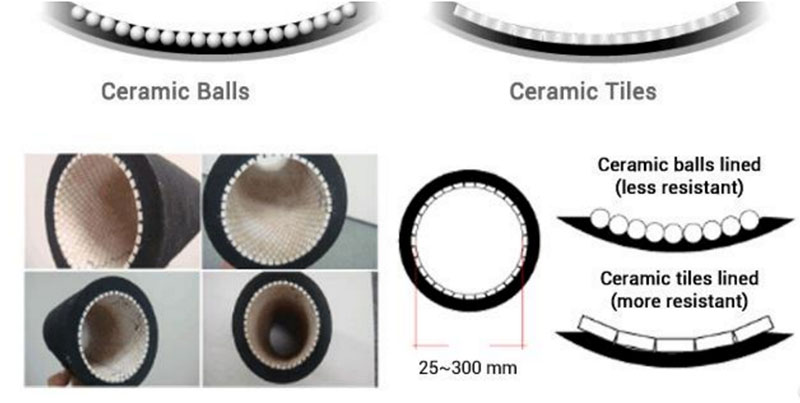

Inner rubber is complied by composite of ceramic balls (diameter ø3 to ø10) or Hex ceramic tiles and binder rubber with strong adhesion.
Ceramic lining is 12 times more wear-resistant than stainless steel
Impact resistant - virtually impossible to destroy the ceramic segments
Flexible - minimum bend radius is roughly 12 times the hose I.D.
Corrosion-resistant - compatible with most chemicals found in slurries
Wide variety of end-connections
Purchase any continuous length up to 65 feet
Technical Specifications
Size Range: 1" to 12" I.D.
Pressure Rating: 150 psig.
Temperature Range: -100° F to 250° F
End-Connections: Flanged, plain, etc.
Standard Specification
Working Pressure: 0.98MPa, Max. Length: 10m
| N.D. | in. | I.D.mm | O.D.mm | Weight kg/m |
| 25 | 1 | 25.4 | 52 | 3.7 |
| 32 | 2001/1/4 | 31.8 | 58 | 4.2 |
| 40 | 2001/1/2 | 38.1 | 66 | 5.1 |
| 50 | 2 | 50.8 | 79 | 6.1 |
| 62 | 2002/1/2 | 63.5 | 93 | 7.4 |
| 75 | 3 | 76.2 | 105 | 8.5 |
| 100 | 4 | 101.6 | 138 | 11.9 |
| 125 | 5 | 127 | 166 | 19.7 |
| 150 | 6 | 152.4 | 192 | 24.4 |
OD and weight data is not garanteed, and may be changed due to working pressure and service condition.
