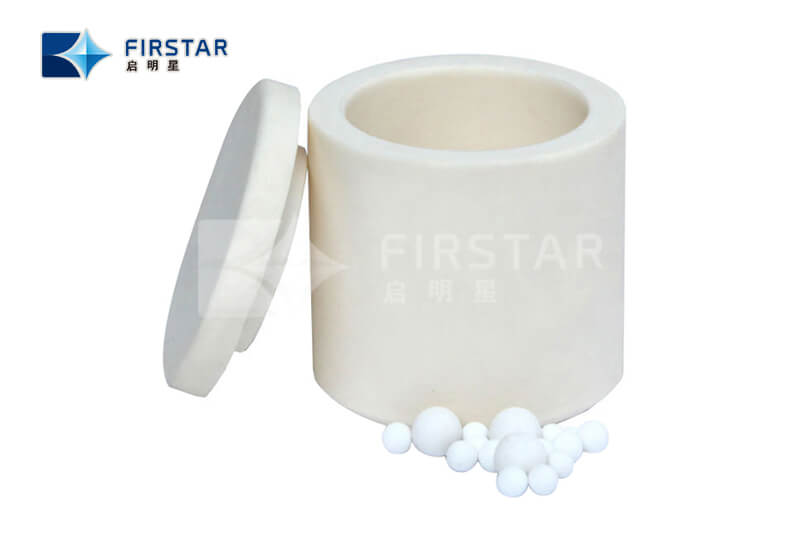

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars has the performance of high wear resistance. Its hardness is 60 times the hardness of ordinary steel, highly wear-resistant and resistant to acid and solvents. The grinding jars are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed zirconium oxide grinding balls. ItemParameterMaterial5wt%Y2O3+95wt%Zro2Crystal structureHigh temperature hexagonal ,low temperature tetragonalBending strength (Mpa) 20C200-300Density (g/cm3)6.04Fracture toughness KIC 20C (Mpa m1/2)2.3Hardness (HV) 20C1000Thermal conductivity W/mk27Specific heat (J/g/k)0.45Thermal expansion coefficient *106/C 20C-100C10Melting point2715℃Temperature range0~2300℃Applicable environmentIngot furnace and corrosive gas furnaceTechnical DataJar Volume Volume OD (mm) ID (mm) Height (mm) 50ml 55 38 67 100ml 65 50 75 250ml 92 74 88 500ml 100 84 118 1000ml 128 108 150 1.5L 132 112 175 2.0L 158 138 162 3.0L 158 138 220 4.0L 205 175 231 5.0L 192 170 254 Choice of Grinding Jars&Grinding Ball In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen. Features1. High specific gravity, high efficiency2. Highly wear resistant to acid and solvents3. High cost-effective, low wear and long lifetime4. Highly polished, smooth, easy to clean, low abrasion to the equipment5. High mechanical strength, good toughness, impact resistance, no broken beads6. Mainly used for lab planetary ball mill machines

Specifications for Alumina Ceramic JarsQMX provides you with high quality premium polished high alumina ceramic jars. These jars are used whenever small quantity of samples need to be grinded. They are extensively applied to in the fields of Paint, Ink, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Item No. : JA0106Material : Premium high purity alumina ceramic -Al2O3Jar Volume : 1,500 mlEach jar set includes grinding jar, jar lid, rubber sealing gasket. Milling media sold separatelyMax Loading Capacity : 2/3 capacity of the grinding jarDensity : 3.8 g/cm3Color : ivory whiteShape : cylindricalHardness : >80 HRAAbrasion Resistance : very goodSuitable for : medium-hard, fibrous samplesAttachment : lid and rubber sealing gasketGrind Balls : alumina ceramic balls (should be ordered separately)Grind Ball Sizes : 3/5/10/15/20mm availableChoice of Grinding Jars & Grinding BallsIn order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.Grinding Jar Ball ConfigurationsGrinding Jar Volume100ml250ml500ml1000mlCompatible Ball Weight66g165g330g660g5mm grinding balls (0.25 g/pc)106 pcs300 pcs10mm grinding balls (1.99 g/pc)20 pcs76 pcs50 pcs100 pcs15mm grinding balls (6.72 g/pc)4 pcs30 pcs59 pcs20mm grinding balls (15.92 g/pc)3 pcs5 pcsThese values are recommendations for general use, the number of balls should be determined experimentally if necessary.PORCELAIN JARS FOR RAPID MILL The jars for rapid mill are made of porcelain alumina, fired at high temperature and are free from porosity. The external surface is glazed. Capacity: 300 cc – 1000 cc – 1800 cc Material feed size < 80 mm Suitable for both dry and wet grinding Maximum quantity of AI2 O3 : 66% Mohs hardness scale: >8 Complete with standard charge of alumina balls, nylon or ceramic lid with seal
