Abrasion Resistance Ceramic Lining Pipe
Product Overview
Abrasion Resistance Ceramic Lining Pipe

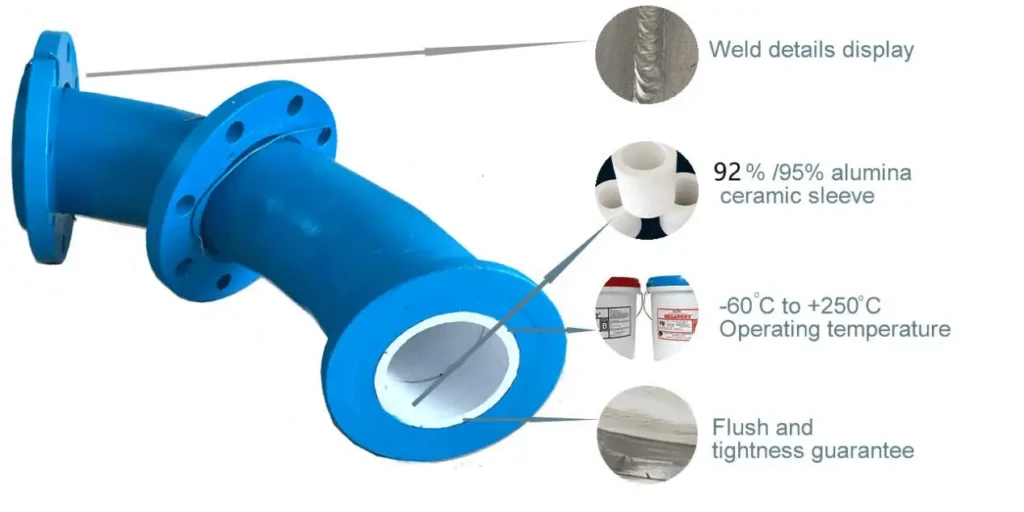

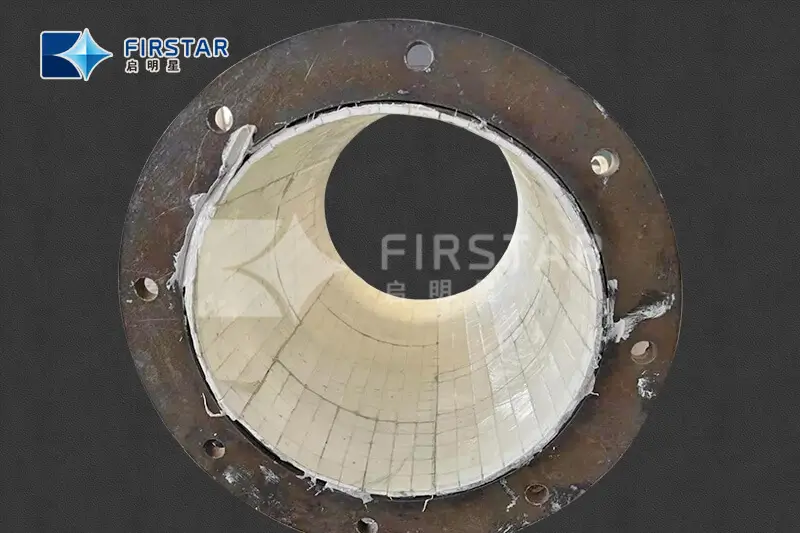

Abrasion resistance ceramic lining pipes are designed and lined with high quality alumina ceramic material like alumina rings. The abrasion resistance ceramic lining pipe as a whole part, and then assemble it into the steel pipe with our high-strength-temperature-resistant epoxy adhesive. The pipe consists of three layers: smooth ceramic lining (compact corundum), ceramic and metal transition layer and the outer steel pipe. We can produce abrasion resistance ceramic lining pipe as per customer’s requirement and application.
Alumina ceramic specifications
Chemical Composition and Physical Properties | |||
Composition | Al2O3 | ≥92% | ≥95% |
Specific Density(g/cm3) | ≥3.60 | ≥3.65 | |
HV Hardness HV20 N/mm2(MPa) | ≥980 | ≥1000 | |
Rock Hardness HRA | ≥82 | ≥85 | |
Bending Strength (MPa) | ≥220 | ≥220 | |
Compressive strength (MPa) | ≥1050 | ≥1300 | |
Fracture Toughness MPam 1/2 | ≥3.70 | ≥3.8 | |
Wear Volume(cm3) | ≤0.25 | ≤0.20c | |
Packing | Ctn box with pallets | ||
Customized Tiles can be made. | |||
The most common applications of ceramic sleeve lined pipes
Industry | Material |
1.Abrasive products | Grinding wheel granules |
2.Aluminium plants | Calcined alumina, bauxite, electrode, carbon, crushed bath |
3.Iron & Steel | Sinter dust, limestone, lime injection, coal, iron carbide, alloy additives |
4.Mineral wool & insulation products | Perlite, stone dust, refractory fibers, production wastes, dust from sawing operations |
5.Foundries | Molding sand, dust collection |
6.Glass plants | Batch, cullet, quartz, kaoline, feldspar |
7.Breweries, grain processing, feed mills | Corn, barley, soy beans, malt, cocoa beans, sunflower seeds, rice hulls, malting plants |
8.Cement | Clinker dust, limestone, cement, fly ash, coal, blast furnace slag |
9.Chemical plants | Caustic lime, fertilizers, lime dust, chrome ore, paint pigments, plastic pallets with glass fi bers |
10.Mineral mining plants | Kiln feed, ore concentrate, coal tailings, dust |
11.Coal fired power stations | Coal, fly ash, pyrites, slag, ash, limestone |
12.Coal mines | Coal dust, mine waste for backfi lling |
13.Technical carbon products | Technical carbon, dust, graphite for electrodes |
STRICT INTERNATIONAL STANDARD (ISO) CERTIFICATION
Established a global quality management and environmental management system.
Passed the international standard certification established by the International Organization for Standardization (ISO). After a strict and systematic international review process, it is proved that the products and services provided to customers are strictly maintained.
ISO 9001 International Standard For Quality Management
Our Quality Management System is managed to consistently meet the needs of our customers with the highest global quality.
ISO14001 Environmental Management System Certification
Establish a world-class green management system to minimize harmful environmental factors and demonstrate that the energy, resource consumption and regeneration of our products are effectively managed.
ISO 45001 Occupational Health and Safety Management System Certification
ISO 45001 Occupational Health and Safety Management System evolved from OHSAS18001 Occupational Health and Safety Management System. This new standard is designed to help organizations around the world ensure the health and safety of their workers.
Applications
Mining & Metallurgy
Wear ceramic linings safeguard chutes, cyclones and pipelines during ore conveying and metallurgical material handling.
Cement & Building Materials
Ceramic wear liners for clinker transfer pipelines and powder processing equipment in cement and construction material plants.
Power & Energy Generation
Applied in coal mills, ash conveying pipelines and desulfurization systems of thermal power plants against abrasion.
Chemical & Coatings Industry
Abrasion & corrosion resistant ceramic linings for slurry transport and mixing equipment in pigment and chemical production.
Ceramics & Glass Manufacturing
High-performance ceramic wear parts for raw material conveying systems of ceramics and glass production lines.
New Energy & Lithium Battery
Low-contamination alumina ceramic liners for lithium powder conveying equipment in lithium battery raw material processing.
Product Advantages
High Hardness & Wear Resistance
Vickers hardness ≥ 1100 HV, offering significantly lower wear loss compared to traditional steel balls.
Cost-Effective Solution
Longer service life means fewer replacements and reduced downtime for your production lines.
Low Abrasion & Contamination
Minimal material wear ensures product purity and prevents contamination during grinding processes.
Precision Manufacturing
Advanced isostatic pressing technology ensures uniform density and consistent quality in every ball.
Custom Sizes Available
We produce balls from Ø 1mm to Ø 100mm, with custom sizes available to meet your specific requirements.
Global Shipping & Support
Fast worldwide shipping with professional technical support from our engineering team.
